Fully Automatic Fresh Noodle and Wonton Wrapper Production Line
The Fresh Noodle and Wonton Wrapper Production Line absorbs the
advantages of similar products. With high automation degree and
advanced technology, it is comparatively the most advanced
non-fried instant noodle production line in China.
Function of Noodle Production Line
1. This production line can produce three kinds of products:raw
fresh noodles, wonton wrapper and dumpling wrapper
2. Functional transformation is simple and easy to operate.
(1) Cutting fresh noodles by cutter at fixed length on conveyor
belt.
(2) The wonton wrapper and dumpling wrapper are formed on the
conveyor belt by the roller with mold, and the dough wrapper is
automatically stacked up one by one after forming, which is easy to
pack.
(3) The operation of replacing the roller with mold is simple, the
rollers with mold of wonton wrapper and the dumpling wrapper are in
the same position, and the rollers with mold can be replaced with
each other.

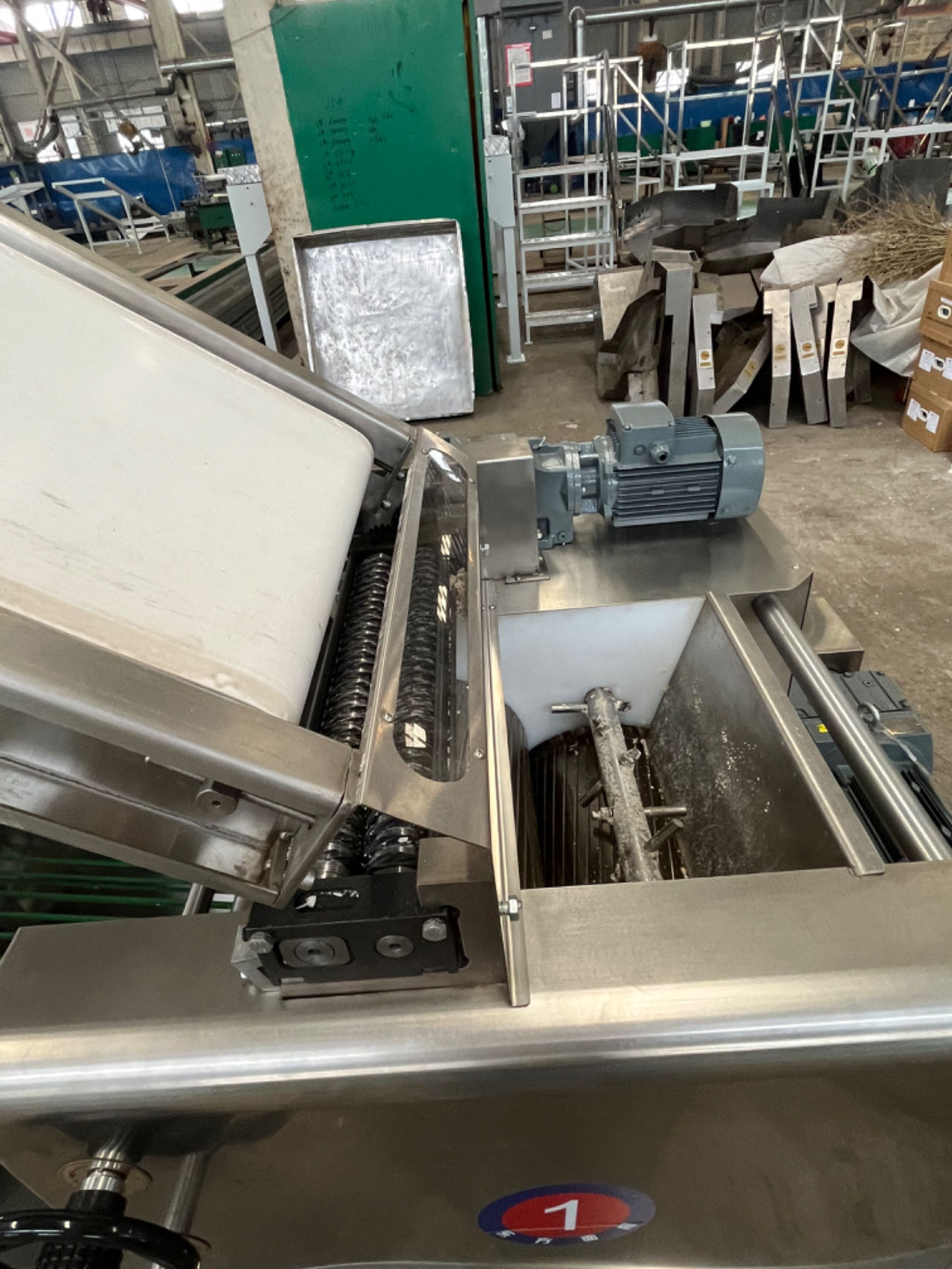

(4) The Side-leftovers can be automatically recycled and
transported to the first dough roller for reprocessing.
(5) The dust-free feeder (powder supply room) is separated from the
production workshop to ensure that the production workshop is clean
and non-dusting.
Noodle Production line Product Description
1. Brine mixer
Power 1.5kw*2
Pump 0.75kw Standard: 500L
Specification: pipes DN32, pump, valve, helical gear reducer,
Material: 304stainless steel: sanitary pipe, joint, pump, valve,
barrel body.
2. Brine measuring machine
Pump 0.75kw Standard: Ȼ318*1000, capacity 80L round shape
Including: pipe DN32, pump, valve 304stainless steel
Material: 304stainless steel: sanitary pipe, joint, pump, valve,
barrel body.
3. Dust-free feeder
Standard: vibrating sieve,Φ900mm
Including: vibrating sieve, fan, dust collection hood, flour tank
Material: SUS304: frame, vibrating sieve(include sieve mesh), dust
collection hood, flour tank
Carbon steel:fan, vibration motor
Platform: prepared by customer
4.Vacuum mixing machine
Power 18.5kw
Frequency control
Rolling-over 1.5kw
Vacuum pump 4kw Product model: DF100
Capacity(flour):100kg/time
Material: stainless steel: mixer body, paddle, cover board;
Carbon steel: driven parts, base (cover 304stainless steel).
Platform: prepared by customer
5.Ripen conveyor
0.55KW frequency control
Smash 0.75KW
Standard: belt length 10m
Including: helical gear reducer
Material: 304 stainless steel: tank frame, protecting board;
Carbon steel: frame.

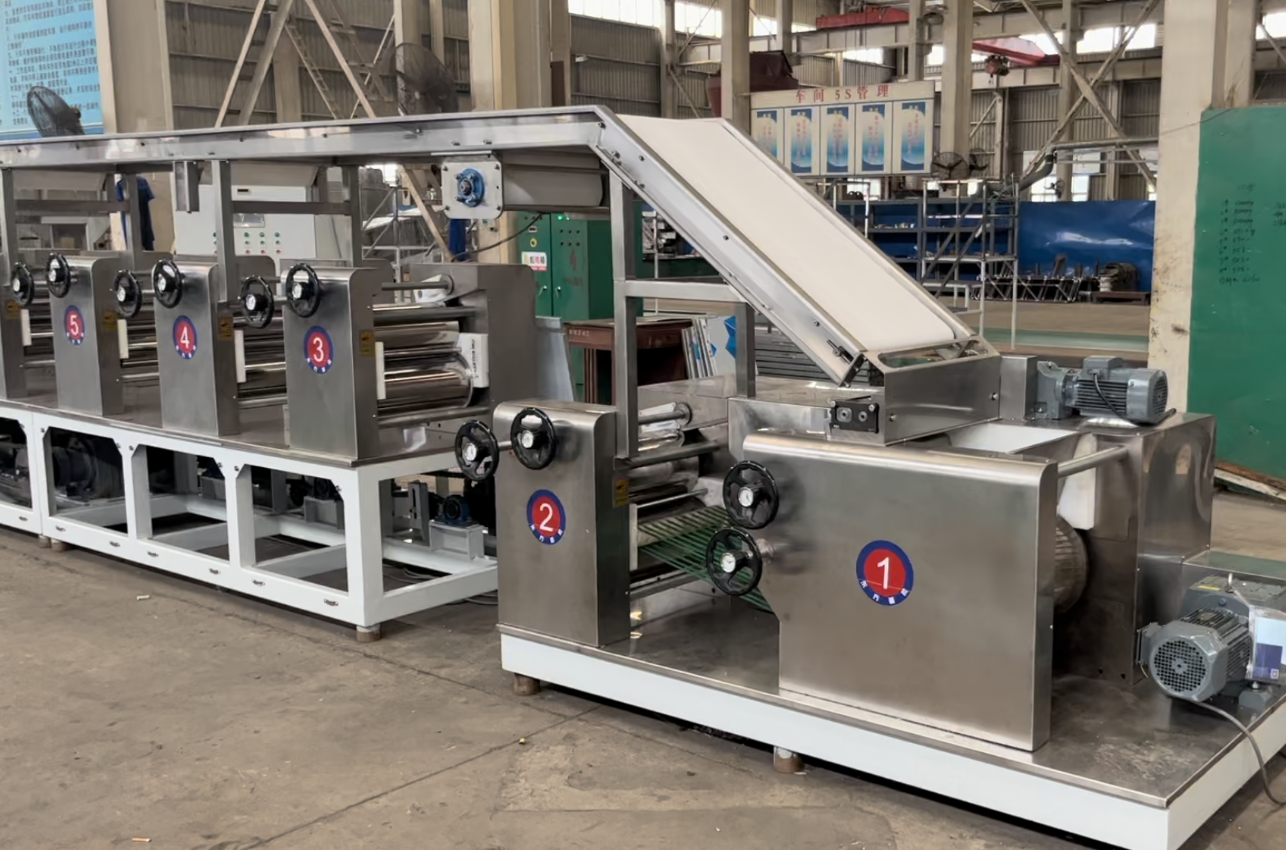

6.Single rollers
3+7.5+4kw
Frequency control
Standard: roller width 450mm, 8group rollers,
φ300×1,φ248×1,Φ216×2,φ180×2,
φ162×2
Including:straight inclined wall plate, helical gear reducer,
hand-wheel with meters, 4 sets square slitter, slitter changing
device
Material: stainless steel:guard cover
Alloy: roller
Nylon:guard plate
Copper: scraper
Carbon steel: Frame(surface painting) and driven parts.
7.Powder spraying machine
Powder spraying 0.37kw Material: stainless steel
Power: 0.75kw Standard: length: about 8m; width: about 500mm
Material: stainless steel:frame
Carbon steel: driven parts
PU: conveyor belt
8.Noodle forming device
Cutting 0.37kw
Noodle wrapper 0.75kw
Conveyor 0.37kw
Conveyor 0.37kw
Standard: The size of the wonton wrapper and dumpling wrapper
undetermined, noodle length undetermined
Including:cutter, cutting roller(with mold), driving roller and
support belt, frame,conveyor belt, accelerating belt
Material: stainless steel:frame
PU: conveyor belt
9.Side-leftovers recycling conveyor
Power: 0.75kw
Standard: length: about 8m; width: about 500mm
Material: stainless steel:frame
Carbon steel: driven parts
10. PU: conveyor belt
Control panel
Frequency control, PLC,converter SCHNEIDER, low voltage parts
CHINT, touch screen WEINVIEW,
including wires from electrical panel to noodle machines and wire
bridges(not including main power wire).
Packing and delivery
Installation and commission
1. Expenses of Visa paid by THE BUYER.
2. Medical treatment insurance premium and “injuries or
deaths”insurance premium for the service technicians’ Accidental
Injury during their installation service period should be paid by
THE BUYER
3. Expenses of engineers in china paid by the Sellers.
4. Expenses of during installation paid by the
Buyers.120USD/DAY(the day form engineers get boarding in china to
boarding in Buyers country after installation.)
5. The Buyers should pay engineers room and board during
installation, and international air tickets.
6. If the buyer do not have enough necessary installation
condition, all the expense of technicians who need go again should
be paid by buyer as the above terms, and the schedule should be
arranged by seller.
After-sale Service Regulation (Policy) for Overseas Customers
1. Guarantee Period
All of the NOODLE PRODUCTION LINE (hereinafter called as Machine)
made by Henan Dongfang Noodle Machine Group Co.,Ltd has one year
(365 days)Quality Guarantee Period. The date would be calculated
from the date of machine operation or 15 Month from the date of sea
shipment (the Date of its B/L).
2. The Wearing parts of the Machine:
If the customer inform us that some Wearing parts is required,
we could arrange to send to air mailing within 7 working days.
All the expenses should be paid through T/T in advance at
customers' cost first.
3. the machine stoppage:
If the machine could not be operated and
need our technical person to Customers' country,
Customer should assist our technical person to get the Visa first
and to purchase return ticket for the technician at customers' cost
first.
the technician should arrive customers' airport as per Customer’s
ticket schedule.
4.If it's found that the problem (stoppage) was happened due to our
quality
or manufacturing problem,
The expenses of parts, mailing charge, airline tickets would be
refunded
to our customer.
It would be excepted if the stoppage was happened due to the
misoperation from
Customer side.
5. Customer should pay technician salary USD 120 per day for each
person
If the steppage happened due to the misoperation from Customer
side.
Customer should not pay technician any salary If the steppage
happened due to the Machine’s quality or manufacturing problem.
The expenses of our technician in customer country should be at our
customer's expenses, which would include local transportation,
food, housing, and Accidental Insurance
Company Information
Customer Show
Some Cooperative Client
Our fully automatic instant noodles production lineshave covered
over 70% of the sales market in China, reaching over 80 countries
and regions in the world, winning approvals among customers both at
home and abroad.
Dongfang is determined to be the leader of noodle machine industry
in the world! Our Service includes: pre-sale service, Installation
And Commissioning And The Acceptance, Technical Information,
After-sales, Warranty And Technical Service, etc.
Our Certificate
Henan Dongfang Noodle Machine Group Co.,Ltd. Established in 1975,
specializes in the design, manufacture and marketing of various
fully automatic noodle production lines.
Fried Instant Noodle and Non-fried Instant Noodle, stick noodle,
chowmein noodle, extruded noodle, semi-dried noodle, fresh noodle,
rippen fresh noodle..etc
With 150,000 square meters standardized factory building area and
over 600 highly qualified employees , has passed ISO9001
certification and CE international standard certification, more
than 40 innovative products have obtained the invention or utility
model national patents, had exported to 80 countries.
Over the recent 30 years, through close cooperation with domestic
universities and research institutions, the company has filled up
many blanks in food machinery industry in China, winning dozens of
awards, such as “National Prize for Progress in Science and
Technology”,“National Prize for New Products”, “First Prize of
National High-Tech, Energy-Saving Products” etc
