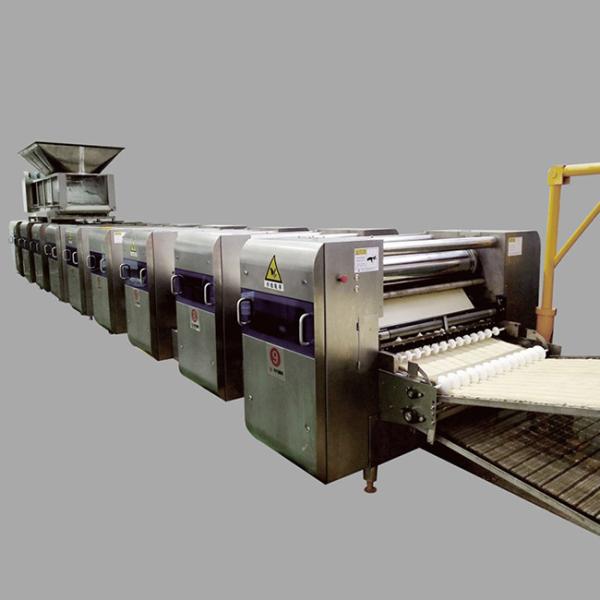

Convenient Operation SUS304 Cup Instant Noodle Production Line 100000PCS8h

Henan Dongfang Noodle Machine Group Co.,Ltd. was founded in 1975. With over 200 high-precision processing equipment such as the machining center, CNC machining tools, and laser cutting machines, Dongfang has become a world-serving noodle machine manufacturing enterprise.

Features of Single Roller machine:

All the electric motors are frequency controlled, making its movement be matched with the whole line. The roller is manufactured by special technology and has a high hardness and a long life. The grooved roller uses cylindrical roller bearing and the smooth roll uses self-aligning roller bearing, which helps to improve the roller spindle nose’s working life. The steel plate-constructed wallboard has a high intensity. An oblique notching is on the wallboard, the grooved roller and the smooth roll are installed on it. And it’s very convenient to assemble, disassemble and maintain.

Technical Parameters:

The Adjustment of Roll Gap:

The adjustment of the roll gap is accomplished through the separate adjustment of the two ends of the roll. For ease of operation, two adjustment hand wheels are mounted on the same side of the wallboard. Adjustment mechanism utilizes worm gear and worm drive. Worm drives the lead screw which is connected with the smooth roll fixedly to begin axial movement so that the roll gap can be adjusted. The adjustment direction of the two hand wheel is opposite.

Company Profile

Henan Dongfang Noodle Machine Group Co., Ltd. was founded in 1975. The company covers an area of more than 300 mu and standardized factory building area beyond 150,000 square meters. Besides, there are over 600 highly qualified employees in Dongfang, including more than 180 professional engineers and technicians.

Factory Tour

With over 200 high-precision processing equipment such as the machining center, CNC machining tools, and laser cutting machines, Dongfang has become a world-serving noodle machine manufacturing enterprise.

Product Introduction

The main products including:

• Fried and Non-fried Noodle Production Line with Capacity of 100,000pcs-1000,000pcs/24H;
• Stick Noodle Production Line with Capacity of 10T-100T/24H;
• Chowmein (Hakka) Noodle Production Line with Capacity of 10T-36T/24H;
• Raw (Ripen) Fresh Noodle Production Line;
• Noodle Leaf (Butterflies Noodle) Production Line;
• Extruded Instant Noodle Production Line.

Henan Dongfang Noodle Machine Group Co., Ltd. welcomes friends from all over the world to visit and mutually create a better future!

Quality Control

Dongfang has passed ISO9001 certification, its main products have obtained the CE international standard certification and more than 40 innovative products have obtained the invention or utility model national patents, leading the technical trend of the noodle machine industry.

Sales Map

Dongfang, the main propellant of Chinese noodle industrialization, has become the main equipment supplier and service provider of the domestic noodle industry, especially the backbone enterprises of noodle products. Over the years, the company’s products have been exported to more than 70 countries and regions like the United States, Germany, Canada, Russia, South Korea, Turkey, Southeast Asia, Europe, Africa, and South America etc. The company’s strategic thinking and world-serving layout are improving progressively.
