Stainless Steel Instant Noodle Production Line Automatic Noodle Maker

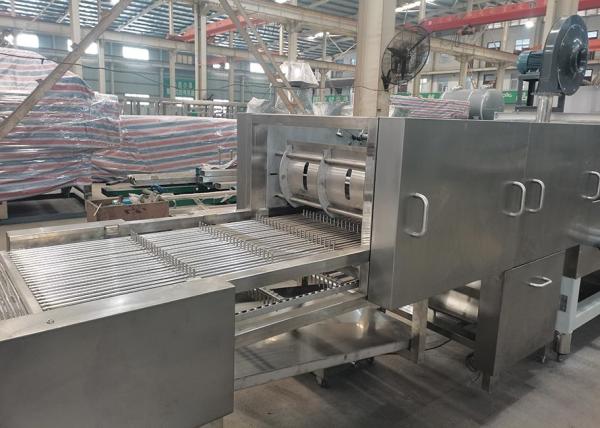

The instant noodle production line is composed of brine mixer, brine measuring device, dual-axis mixer, ripen conveyor, compound roller, multi-layer steamer, square noodle cutting and dividing machine, fryer, cooling machine, conveyor and other unit machines.

Use of Dual-axis Mixer:

Mixing flour is the process of stirring flour and salt water evenly in a certain proportion, so that the protein and starch in the flour absorb water and expand into cotton-wool pasta.

Main Structure and Working Principle of Dual-axis Mixer:

Dual-axis mixer is composed of motor, reducer, the pot body, stirring shaft and pneumatic door system, etc. Motor drives gear box through pot stirring shaft rotation. The stirring paddle on each axis in the axis span assumes the helix disposition. Two reverse rotation axis is driven by a pair of gears.

The power uses the two-speed electric motor and the high and low speed switches automatically by the setting time. Using high speed when adding water to reach the uniform water absorption of flour and water. After reaching the set time, it will be automatically changed into low speed and stir to knead.

Technical Parameters:

Company Profile

Henan Dongfang Noodle Machine Group Co., Ltd. was founded in 1975. The company covers an area of more than 300 mu and standardized factory building area beyond 150,000 square meters. Besides, there are over 600 highly qualified employees in Dongfang, including more than 180 professional engineers and technicians.

Factory Tour

With over 200 high-precision processing equipment such as the machining center, CNC machining tools, and laser cutting machines, Dongfang has become a world-serving noodle machine manufacturing enterprise.

Product Introduction

The main products including:

• Fried and Non-fried Noodle Production Line with Capacity of 100,000pcs-1000,000pcs/24H;
• Stick Noodle Production Line with Capacity of 10T-100T/24H;
• Chowmein (Hakka) Noodle Production Line with Capacity of 10T-36T/24H;
• Raw (Ripen) Fresh Noodle Production Line;
• Noodle Leaf (Butterflies Noodle) Production Line;
• Extruded Instant Noodle Production Line.

Henan Dongfang Noodle Machine Group Co., Ltd. welcomes friends from all over the world to visit and mutually create a better future!

Quality Control

Dongfang has passed ISO9001 certification, its main products have obtained the CE international standard certification and more than 40 innovative products have obtained the invention or utility model national patents, leading the technical trend of the noodle machine industry.

Sales Map

Dongfang, the main propellant of Chinese noodle industrialization, has become the main equipment supplier and service provider of the domestic noodle industry, especially the backbone enterprises of noodle products. Over the years, the company’s products have been exported to more than 70 countries and regions like the United States, Germany, Canada, Russia, South Korea, Turkey, Southeast Asia, Europe, Africa, and South America etc. The company’s strategic thinking and world-serving layout are improving progressively.
